Machines and Accessories
Modular Design
NOVIX is built around a fully modular system:
You can choose from three base modules:
8160 ES (spiral cabinet system)
440 PO (compact spiral cabinet with 360° control panel)
10 LPO (electronically controlled drawer cabinet)
From there, you simply expand as needed.
With add-on spiral modules (Basic 440 ES, EWM 440), drawer extensions (EWM 10L), the half-size 440 PO.XS, top-mounted control panels (PG EWM), and retrofit options for existing installations, capacity grows step by step—without ever changing the system.
The result: scalable storage capacity, mixed dispensing setups (spiral/drawer), a unified software and control system, and full future-proofing.
SPS Vending Machine Planning and Consulting
As part of our consulting service, we work with you—either on-site or at our facility—to analyze your requirements and develop a tailored, efficient solution.
Base Modules

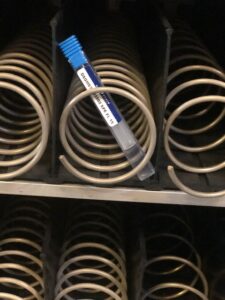

Novix 8160 ES Spiral Cabinet with Base and Control Panel
Levels: 8
Compartments per level: 2 (right and left)
Spirals per compartment: 10
- Items per spiral: max. 18 (depending on spiral size)
Items per level: up to 360 (2880 in total)
Interface: 17″ touchscreen with integrated PC
Software: Windows 11 Professional 64-bit
Processor: Intel
Storage: 2× SSD
Wi-Fi: Yes
Connectivity: 2× Ethernet
RFID scanner: optional
Power supply: 230 V / DAC
Power consumption: 700 W
Color: RAL 7035
Dimensions (mm): 1012 / 1137 / 1908
Type: 8160 ES
Novix 440.PO Spiral Cabinet with Base and 360° Control Unit
Levels: 4
Compartments per level: 10
Spirals per compartment: up to 10
Items per level: up to 180
Interface: 17″ touchscreen with integrated PC
Software: Windows 11 Professional 64-bit
Processor: Intel (subject to change)
Storage: 2× SSD
Wi-Fi: Yes
Connectivity: 2× Ethernet
RFID scanner: optional
Power supply: 230 V
- Power consumption : 500 W
Safety: Mechanical locking + software-controlled release for secure dispensing
Color: RAL 7035
Dimensions (mm): 960 / 570 /1480
Type: Basic 440.PO
Novix 10PLO Drawer Cabinet with 10 Drawers & Control Unit
Drawers: 10 (electronically controlled)
Tools per drawer: 99
Layout configurable as required
Can also be expanded with spiral modules
Interface: 17″ touchscreen with integrated PC
Software: Windows 11 Professional 64-bit
Processor: Intel (specifications subject to change)
Storage: 2× SSD
Wi-Fi: Yes
Connectivity: 2× Ethernet
RFID: optional
Power supply: 230 V / DAC
Power consumption: 600 W
Color: RAL 7035
Safety:
Drawers are mechanically locked; unlocking via electromagnet
Visual indicator: “3-color LED” during unlocking
Monitored closing: acoustic alert + flashing red LED after preset timeout
- Color: RAL 7035
Dimensions (mm): 1012 / 1137 / 1908
Type: 10PLO
Extension Modules
Novix Basic 440ES
Levels: 4
Compartments per level: 10
Spirals per compartment: up to 10
Items per level: up to 100
Wi-Fi: yes
Connectivity: 2× Ethernet
RFID: optional
Power supply: 230 V / DAC
Power consumption: 150 W
Color: RAL 7035
Dimensions (mm): 955 / 550 / 850
Type: Basic 440ES Base cabinet with stand
Novix Extension Module 440
Identical to the “Basic 440ES” module, but without feet.
Can only be mounted on top of the “Basic 440ES” base module.
All required hardware components for integration into the base module are already installed.
Type: EWM 440 Extension module without stand
Novix Extension Module 10L
Levels: 10
Items per level: 99
Wi-Fi: yes
Connectivity: 2× Ethernet
RFID: optional
Power supply: via connection to the base unit
Power consumption: 200 W
Safety:
Visual indicator: “3-color LED” during unlocking
Drawers mechanically locked; unlocking via electromagnet
Monitored closing: acoustic alert + flashing red LED after preset timeout
Color: RAL 7035
Dimensions (mm): 700 / 500 /1070
Expansion: Can be connected to one Basic 440ES module
Standard: 1 unit
Optional: up to 4 units per Basic module
Type: EWM10L Drawer-based extension module
Novix 440.PO.XS Spiral Cabinet with Base and 180° Control Unit
Identical to the 440.PO model, but with a half-side handle (180°).
Designed for space-saving installation against walls or within workstations.
Levels: 4
Compartments per level: 1
Spirals per compartment: up to 10
Items per level: up to 180
Interface: 17″ touchscreen with integrated PC
Software: Windows 11 Professional 64-bit
Processor: Intel (specifications subject to change)
Storage: 2× SSD
Wi-Fi: yes
Connectivity: 2× Ethernet
RFID scanner: optional
Power supply: 230 V
- Power consumption : 500 W
Safety: Mechanical locking + software-controlled release for secure dispensing
Color: RAL 7035
Dimensions (mm): 960 / 570 /1480
Type: 440.PO.XS
Novix PG EWM Top-Mounted Control Unit
Can be combined with extension modules
Up to 16 EWM modules in any configuration
Can also be supplied as a stand-alone version for operation without extension modules
Interface: 17″ touchscreen with integrated PC
Software: Windows 11 Professional 64-bit
Processor: Intel (specifications subject to change)
Storage: 2× SSD
Wi-Fi: yes
Connectivity: 2× Ethernet
RFID: optional
Power supply: 12 V
- Power consumption: 60 W
Color: RAL 7035
Type: PG EWM
Upgrade of old Models
Novix 8140 ES Retrofit Spiral Cabinet with Base, Side Control Panel
Retrofit solution for older tool vending systems (former ARCTUS models)
Replacement of housing, computer, and software
Existing mechanics (drawers, motors, spirals) remain in use
Upgrade option for cabinets with outdated software (last update 2017)
Visually identical to current NOVIX models
Retrofit version with 7 levels (new models feature 8 levels)
Flexible combinations available (spiral + spiral, spiral + drawers, large + small)
Upgrades for other manufacturers available on request (subject to case review)
Type: 8140 ES Retrofit
